Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 10 of 12

Watertower

Location — Koudougou
Country — Burkina Faso

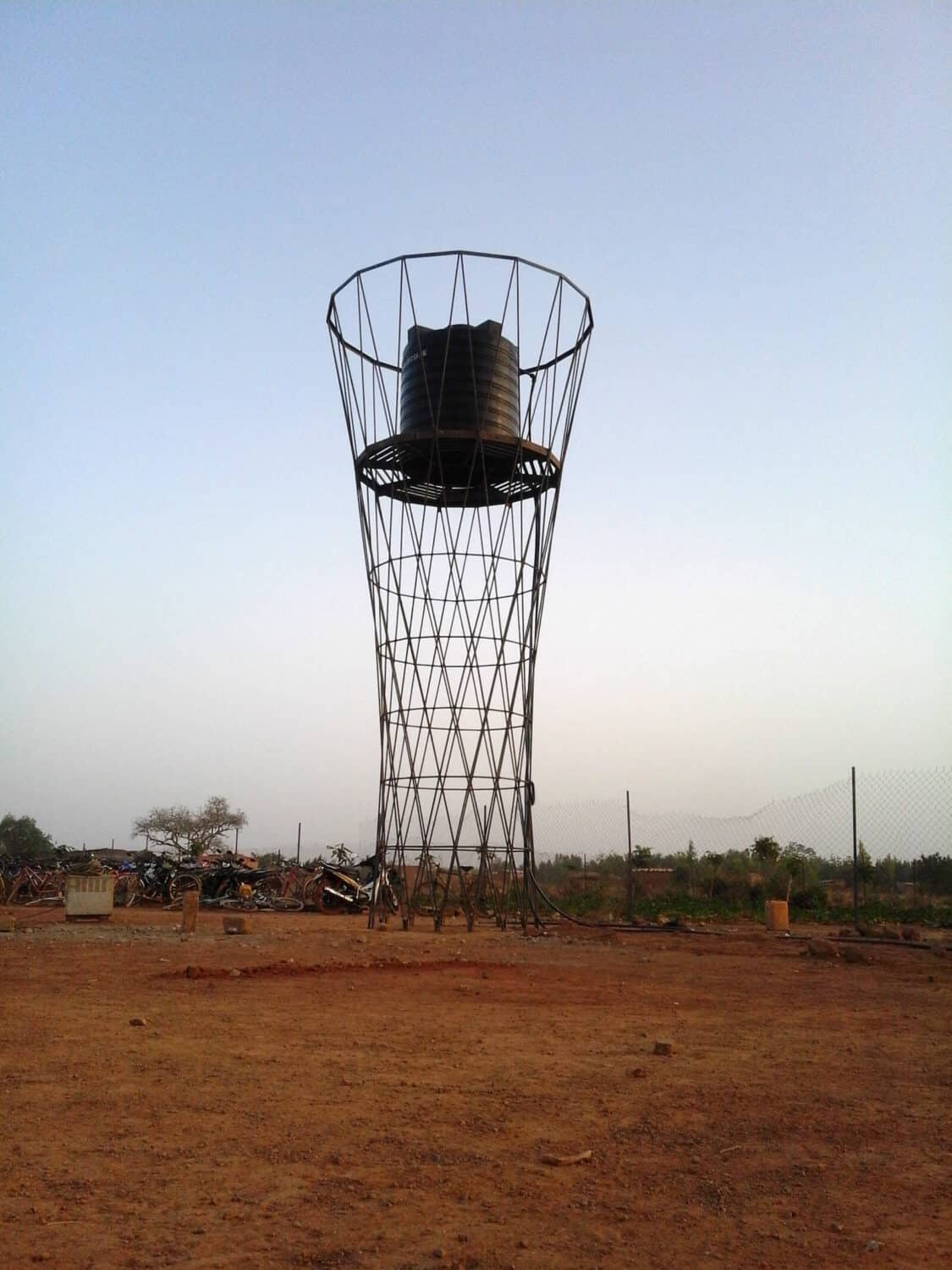

fig. (1)

front view

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 1 of 12
fig. (2)

reinforced structure for foundation

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 2 of 12
fig. (3)

foundation ditch

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 3 of 12
fig. (4)

1st stage: foundation basement

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 4 of 12
fig. (5)

floor platform

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 5 of 12
fig. (6)

2nd stage: temporary structure for assembling

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 6 of 12
fig. (7)

3d stage: floor placement

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 7 of 12
fig. (8)

4th stage: 20mm rebar welding

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 8 of 12
fig. (9)

5th stage: top part assembling

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 9 of 12
fig. (10)

unprogrammed alternative uses

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 10 of 12
fig. (11)

plans

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 11 of 12
fig. (12)

axonometries

Watertower – Koudougou, Burkina Faso, 2016. Diego Sologuren, image 12 of 12

As part of the Infrastructure to supply the school of Schorge, this watertower has been conceived in connection with the local well and the orchard, within the didactic programme for the children. The process of design and construction has been, once again, in relationship with the local needs, techniques, resources and materials.

The structure is composed of 16+16 20mm concrete rebars welded forming a hyperboloid which acquires a somewhat iconic presence. It bears a 3000 liter water tank on the platform situated 6 meters above the ground. The construction process, although planned very rapidly, was carried out succesfully, with very scarce means, but with an efficient coordination between the designers and the workers.
